You’re about to upgrade your home or office with the convenience of USB sockets, but first, you need to get your hands dirty. Before you start, make sure you’ve turned off the power supply and confirmed it’s safe to work on. Now, take a closer look at the existing socket terminals and label them correctly – it’s important to identify the live, neutral, and earth wires. You’ve got the basics covered, but what’s next? How do you verify a secure and functional installation? The next steps are important, and getting them right will make all the difference.
Prepare for Socket Replacement
Before you begin replacing your old socket with a new USB socket, identify and turn off the power supply to the existing socket to secure your safety during the process. Make certain you’ve switched off the power supply to avoid any electrical shock or injuries. Next, use a voltage tester to confirm that the power is completely off before proceeding with the replacement.
Gather all the necessary tools you’ll need for the installation, including a screwdriver, wire cutters, and the new USB socket. Take a moment to examine the existing socket and take note of the location of the live, neutral, and earth terminals. This will help you wire the new socket correctly.
Clear the work area around the socket to establish a safe and well-lit environment for the installation process. Make sure there are no obstacles or tripping hazards that could interfere with your work. With these steps complete, you’ll be ready to start the replacement process, confident that you’ve taken the necessary precautions to secure a safe and successful installation.
Remove the Existing Socket
You’ll start by loosening the terminal screws on the existing socket, taking care to identify the live, neutral, and earth terminals for safe disconnection. Make certain to label each terminal to avoid confusion later. Once the screws are removed, gently pull the socket out of the wall, taking note of the single or twin earth terminals.
Here’s a quick rundown of the terminals you’ll encounter:
| Terminal | Description |
|---|---|
| Live | Carries the electrical current |
| Neutral | Completes the electrical circuit |
| Earth | Provides grounding for safety |
As you remove the socket, make sure you’re prepared for the installation by checking the back box for proper grounding. Don’t forget to isolate power to the socket before completely removing it from the wall – safety first! With the existing socket removed, you’re one step closer to installing your new USB socket.
Prepare the New USB Socket
Now that you’ve removed the existing socket, it’s time to prepare the new USB socket for installation. You’ll need to identify the live, neutral, and earth terminals on the new socket and get it ready for cable insertion. Next, you’ll loosen the terminals and confirm proper grounding to guarantee a safe and secure installation.
Terminal Identification
Consult the manufacturer’s instructions or the color-coding on the new USB socket to identify the live, neutral, and earth terminals. This important step guarantees you connect the wires correctly, avoiding any potential electrical hazards. Once you’ve identified the terminals, remove the screws from the back of the new socket and cover the exposed screw heads with plastic caps for safety.
Next, loosen the terminals on the new socket to prepare for cable insertion. Make sure they’re secure but not overly tightened. It is vital to connect the earth terminal properly to ensure the socket is grounded and safe for use. Take note of the specific color-coding for live, neutral, and earth wires, and insert the cables into the corresponding terminals on the new socket. This attention to detail will ensure a safe and functional USB socket installation. By following these steps, you’ll be well on your way to a successful installation.
Socket Preparation
With the terminals identified and prepared, remove the screws from the back of the new USB socket and cover the exposed screw heads with plastic caps for safety. This is a vital step to prevent accidents and guarantee a smooth installation process. Next, loosen the terminals on the new socket to prepare for cable insertion and establish a secure connection. Make sure to pay attention to the color-coding for live, neutral, and earth wires when installing cables in the new socket. Properly grounding the new socket is important, so connect the back box earth to the earth terminal on the socket. This will provide a safe and reliable connection. Take your time and work methodically to make sure everything is in place before moving on to the next step. By following these steps, you’ll have your new USB socket prepared and ready for installation.
Install the Cables Correctly
Now that you have your new USB socket ready, it’s time to connect the cables correctly. You’ll need to make sure the live wire is securely connected to the live terminal, following the color-coding guidelines, and that the cables are properly secured to prevent loose connections. By doing so, you’ll be able to move on to the next step with confidence, knowing your cables are safely and correctly installed.
Live Wire Connection
Connecting the live wire to the USB socket’s live terminal is a critical step that demands attention to detail and precision. You’ll need to identify the live wire by its color, usually brown or red, and connect it to the live terminal on the USB socket. Make sure it’s securely fastened in the terminal to prevent any loose connections.
Here’s a quick checklist to make sure you get it right:
| Step | Action | Verification |
|---|---|---|
| 1 | Identify live wire by color | Brown or red wire identified |
| 2 | Connect live wire to live terminal | Securely fastened in terminal |
| 3 | Check color-coding | Correct terminal identified |
| 4 | Inspect wire insulation | Properly insulated and positioned |
| 5 | Test live wire connection | Voltage tester confirms power flow |
Double-check the color-coding of wires to avoid any mistakes in connecting the live wire to the correct terminal. Confirm that the live wire is appropriately insulated and positioned within the terminal for safe and effective electrical connection. Finally, test the live wire connection by using a voltage tester to verify that the power flows correctly to the USB socket.
Secure Cable Fixing
You’ll need to insert the live, neutral, and earth cables into their corresponding terminals on the USB socket, following strict color-coding standards to prevent electrical hazards. Make certain to connect the brown wire to the live terminal, the blue wire to the neutral terminal, and the green/yellow wire to the earth terminal. After connecting the cables, tighten the terminals securely to avoid loose connections that can lead to power issues or potential safety risks.
Next, verify the neutral and earth cables are properly fixed in place to maintain a stable and reliable electrical connection. Don’t forget to connect the back box earth wire to the earth terminal on the socket to guarantee proper grounding and safety during use. By following these steps, you’ll have securely fixed the cables, minimizing the risk of electrical hazards and guaranteeing a safe and reliable USB socket installation.
Complete the Installation Process

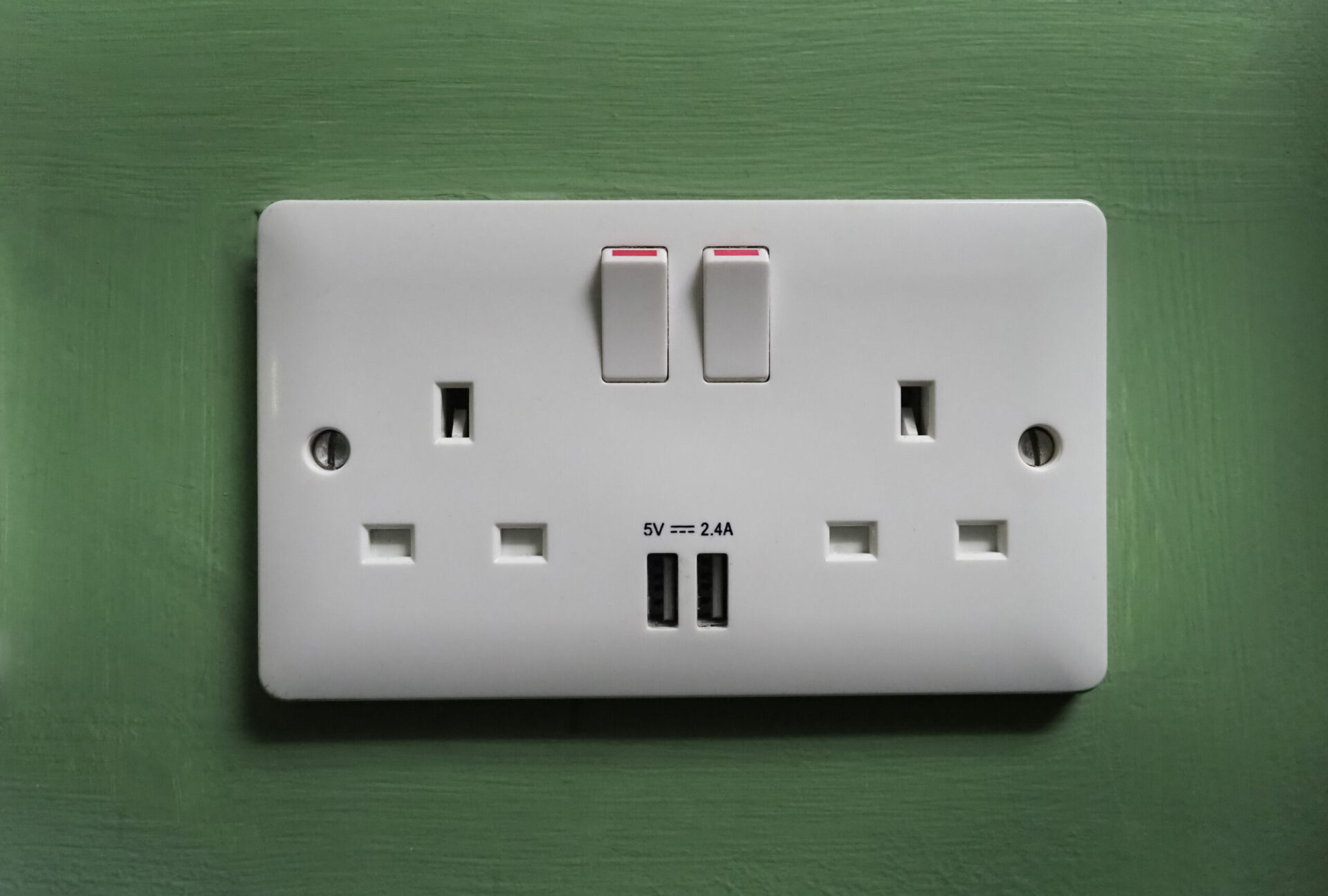

With the USB socket mounted on the wall, finalize the installation by double-checking the cable connections and securing the back box earth connection. Confirm the live, neutral, and earth cables are correctly placed in the new USB socket before tightening the terminals. Also, verify the back box earth connection is secure to guarantee proper grounding of the new socket.
Next, use plastic caps to cover the screw heads on the back of the socket to prevent any accidental contact with live terminals. Then, make sure the socket is leveled and securely attached to the wall using the provided screws for a professional finish. Step back and visually inspect your work to validate everything is in order.
Test the USB Socket Functionality
Now that the USB socket is securely in place, test its functionality by plugging in a device to verify it’s receiving power. Make sure the socket is properly connected to the power source, or it won’t work. Take your phone or tablet and plug it into one of the USB ports to see if it starts charging. If it does, that’s a good sign.
Next, try plugging in different devices to confirm the socket can handle multiple charging tasks. Check the LED indicator on the socket to verify the power supply is working. If the light is on, it’s getting power. If not, you might need to double-check your wiring.
Frequently Asked Questions
Do Sockets With USB Need Extra Wiring?
You’re wondering if sockets with USB need extra wiring? Not necessarily, since they usually require the same wiring as regular sockets, with the added USB ports integrated into the design.
Is It Easy to Install USB Outlets?
You might think installing USB outlets is challenging, but trust us, it’s easier than you think! With basic electrical knowledge and the right tools, you’ll be able to get the job done quickly and safely.
Do USB Outlets Require Special Wiring?
You’re wondering if USB outlets require special wiring – the answer is no, they don’t; they typically replace existing sockets and use the same wiring configuration, making installation a straightforward process.
Can You Replace Normal Sockets With Usb?
You can replace normal sockets with USB ones, but verify compatibility with your existing wiring system and consider the power output to meet your devices’ charging requirements before making the switch.
